Public Member Functions | Public Attributes | Friends | List of all members
System Struct Referenceexport
module system

Represents the central system for simulations. More...

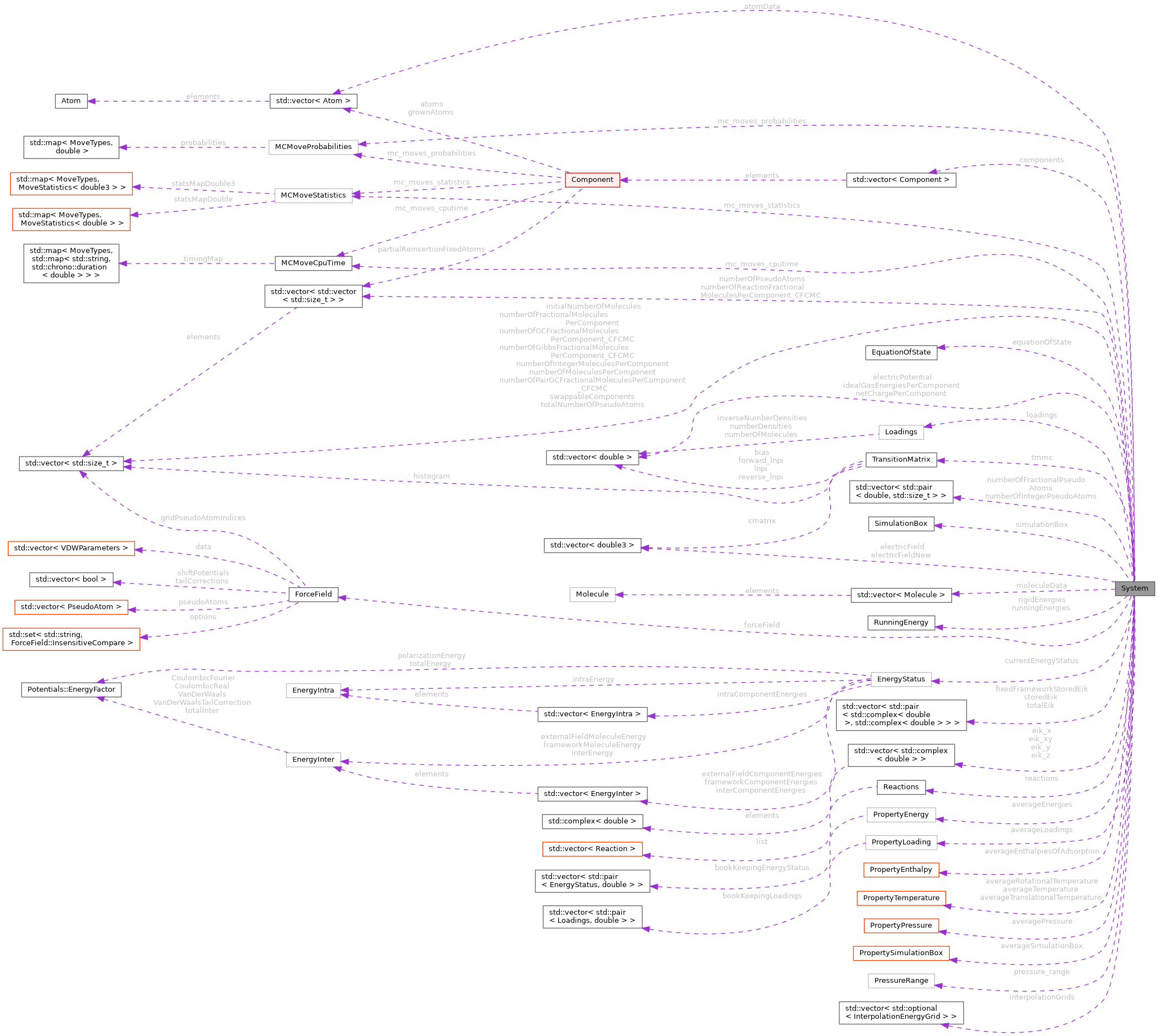

Collaboration diagram for System:
Collaboration graph
[legend]

Public Member Functions

 System ()=default
 Default constructor for the System class.

 System (std::size_t id, ForceField forcefield, std::optional< SimulationBox > box, double T, std::optional< double > P, double heliumVoidFraction, std::optional< Framework > framework, std::vector< Component > components, std::vector< std::vector< double3 > > initialPositions, std::vector< std::size_t > initialNumberOfMolecules, std::size_t numberOfBlocks, const MCMoveProbabilities &systemProbabilities=MCMoveProbabilities(), std::optional< std::size_t > sampleMoviesEvery=std::nullopt)
 Constructs a System object programmatically.

 System (std::size_t id, double T, std::optional< double > P, double heliumVoidFraction, std::optional< Framework > framework, std::vector< Component > components)

std::optional< double > frameworkMass () const

std::size_t indexOfGCFractionalMoleculesPerComponent_CFCMC (std::size_t selectedComponent)
 The fractional molecule for grand-canonical is stored first.

std::size_t indexOfPairGCFractionalMoleculesPerComponent_CFCMC (std::size_t selectedComponent)
 The fractional molecule for grand-canonical pair-insertion is stored second.

std::size_t indexOfGibbsFractionalMoleculesPerComponent_CFCMC (std::size_t selectedComponent)
 The fractional molecule for Gibbs is stored third.

void addComponent (const Component &&component) noexcept(false)

void createFrameworks ()

void createInitialMolecules (const std::vector< std::vector< double3 > > &initialPositions)

void checkCartesianPositions ()

void precomputeTotalRigidEnergy () noexcept

void precomputeTotalGradients () noexcept

RunningEnergy computeTotalEnergies () noexcept

RunningEnergy computePolarizationEnergy () noexcept

RunningEnergy computeTotalGradients () noexcept

void computeTotalElectrostaticPotential () noexcept

void computeTotalElectricField () noexcept

std::size_t randomFramework (RandomNumber &random)

std::size_t randomComponent (RandomNumber &random)

std::size_t numerOfAdsorbateComponents ()

std::size_t randomMoleculeOfComponent (RandomNumber &random, std::size_t selectedComponent)

std::size_t randomIntegerMoleculeOfComponent (RandomNumber &random, std::size_t selectedComponent)

std::size_t indexOfFirstMolecule (std::size_t selectedComponent)

std::vector< Atom >::iterator iteratorForMolecule (std::size_t selectedComponent, std::size_t selectedMolecule)

std::vector< double3 >::iterator iteratorForElectricField (std::size_t selectedComponent, std::size_t selectedMolecule)

std::vector< Molecule >::iterator indexForMolecule (std::size_t selectedComponent, std::size_t selectedMolecule)

std::size_t moleculeIndexOfComponent (std::size_t selectedComponent, std::size_t selectedMolecule)

std::span< Atom > spanOfMolecule (std::size_t selectedComponent, std::size_t selectedMolecule)

const std::span< const Atom > spanOfMolecule (std::size_t selectedComponent, std::size_t selectedMolecule) const

const std::span< const Atom > spanOfIntegerAtomsOfComponent (std::size_t selectedComponent) const

std::span< const Atom > spanOfFrameworkAtoms () const

std::span< Atom > spanOfFrameworkAtoms ()

std::span< const Atom > spanOfRigidFrameworkAtoms () const

std::span< const Atom > spanOfFlexibleAtoms () const

std::span< const Atom > spanOfMoleculeAtoms () const

std::span< Atom > spanOfMoleculeAtoms ()

std::span< double > spanOfMoleculeElectrostaticPotential ()

std::span< double3 > spanOfMoleculeElectricField ()

std::span< double3 > spanOfMoleculeElectricFieldNew ()

std::span< double3 > spanElectricFieldNew (std::size_t selectedComponent, std::size_t selectedMolecule)

const std::span< const double3 > spanElectricFieldNew (std::size_t selectedComponent, std::size_t selectedMolecule) const

std::span< double3 > spanElectricFieldOld (std::size_t selectedComponent, std::size_t selectedMolecule)

const std::span< const double3 > spanElectricFieldOld (std::size_t selectedComponent, std::size_t selectedMolecule) const

std::size_t numberOfMolecules () const

std::size_t numberOfIntegerMolecules () const

double weight () const

void removeRedundantMoves ()

void rescaleMoveProbabilities ()

void determineSwappableComponents ()

void determineFractionalComponents ()

void rescaleMolarFractions ()

void computeComponentFluidProperties ()

void computeNumberOfPseudoAtoms ()

void optimizeMCMoves ()

std::string writeOutputHeader () const

std::string writeNumberOfPseudoAtoms () const

std::string writeInitializationStatusReport (std::size_t currentCycle, std::size_t numberOfCycles) const

std::string writeEquilibrationStatusReportMC (std::size_t currentCycle, std::size_t numberOfCycles) const

std::string writeEquilibrationStatusReportMD (std::size_t currentCycle, std::size_t numberOfCycles) const

std::string writeProductionStatusReportMC (const std::string &statusLine) const

std::string writeProductionStatusReportMD (std::size_t currentCycle, std::size_t numberOfCycles) const

std::string writeSystemStatus () const

std::string writeComponentStatus () const

std::string writeMCMoveStatistics () const

nlohmann::json jsonSystemStatus () const

nlohmann::json jsonComponentStatus () const

nlohmann::json jsonMCMoveStatistics () const

void insertMolecule (std::size_t selectedComponent, const Molecule &molecule, std::vector< Atom > atoms)

void insertMoleculePolarization (std::size_t selectedComponent, const Molecule &molecule, std::vector< Atom > atoms, std::span< double3 > electricField)

void insertFractionalMolecule (std::size_t selectedComponent, const Molecule &molecule, std::vector< Atom > atoms, std::size_t moleculeId)

void deleteMolecule (std::size_t selectedComponent, std::size_t selectedMolecule, const std::span< Atom > atoms)

void updateMoleculeAtomInformation ()

void checkMoleculeIds ()

std::vector< Atom > randomConfiguration (RandomNumber &random, std::size_t selectedComponent, const std::span< const Atom > atoms)

bool insideBlockedPockets (const Component &component, std::span< const Atom > molecule_atoms) const

void sampleProperties (std::size_t currentBlock, std::size_t currentCycle)

void writeCPUTimeStatistics (std::ostream &stream) const

std::pair< EnergyStatus, double3x3 > computeMolecularPressure () noexcept

std::pair< std::vector< Molecule >, std::vector< Atom > > scaledCenterOfMassPositions (double scale) const

void writeComponentFittingStatus (std::ostream &stream, const std::vector< std::pair< double, double > > &rawData) const

void createInterpolationGrids (std::ostream &stream)

void writeRestartFile ()

std::string repr () const


Public Attributes

std::uint64_t versionNumber {1}

std::size_t systemId {}

double temperature {300.0}

double pressure {1e4}

double input_pressure {1e4}

double beta {1.0 / (Units::KB * 300.0)}

double heliumVoidFraction {0.29}

std::size_t numberOfFrameworks {0}

std::size_t numberOfFrameworkAtoms {0}

std::size_t numberOfRigidFrameworkAtoms {0}

std::optional< Framework > framework

std::vector< Component > components

EquationOfState equationOfState

std::optional< Thermostat > thermostat

Loadings loadings

std::vector< std::size_t > swappableComponents {}

std::vector< std::size_t > initialNumberOfMolecules {}

std::vector< std::size_t > numberOfMoleculesPerComponent {}

std::vector< std::size_t > numberOfIntegerMoleculesPerComponent {}

std::vector< std::size_t > numberOfFractionalMoleculesPerComponent {}

std::vector< std::size_t > numberOfGCFractionalMoleculesPerComponent_CFCMC {}

std::vector< std::size_t > numberOfPairGCFractionalMoleculesPerComponent_CFCMC {}

std::vector< std::size_t > numberOfGibbsFractionalMoleculesPerComponent_CFCMC {}

std::vector< std::vector< std::size_t > > numberOfReactionFractionalMoleculesPerComponent_CFCMC {}

std::vector< double > idealGasEnergiesPerComponent {}

ForceField forceField

bool hasExternalField

std::vector< std::vector< std::size_t > > numberOfPseudoAtoms

std::vector< std::size_t > totalNumberOfPseudoAtoms

std::vector< std::pair< double, std::size_t > > numberOfIntegerPseudoAtoms

std::vector< std::pair< double, std::size_t > > numberOfFractionalPseudoAtoms

std::size_t translationalCenterOfMassConstraint {}

std::size_t translationalDegreesOfFreedom {}

std::size_t rotationalDegreesOfFreedom {}

double timeStep {0.0005}

SimulationBox simulationBox

bool containsTheFractionalMolecule {true}

std::vector< Atom > atomData

std::vector< Molecule > moleculeData

std::vector< double > electricPotential

std::vector< double3 > electricField

std::vector< double3 > electricFieldNew

double conservedEnergy {}

double referenceEnergy {}

double accumulatedDrift {}

RunningEnergy rigidEnergies

RunningEnergy runningEnergies

double3x3 currentExcessPressureTensor

EnergyStatus currentEnergyStatus

std::size_t numberOfHybridMCSteps {10}

std::vector< std::complex< double > > eik_xy {}

std::vector< std::complex< double > > eik_x {}

std::vector< std::complex< double > > eik_y {}

std::vector< std::complex< double > > eik_z {}

std::vector< std::pair< std::complex< double >, std::complex< double > > > storedEik {}

std::vector< std::pair< std::complex< double >, std::complex< double > > > fixedFrameworkStoredEik {}

std::vector< std::pair< std::complex< double >, std::complex< double > > > totalEik {}

double CoulombicFourierEnergySingleIon {0.0}

double netCharge {0.0}

double netChargeFramework {0.0}

double netChargeAdsorbates {0.0}

std::vector< double > netChargePerComponent

MCMoveProbabilities mc_moves_probabilities

MCMoveStatistics mc_moves_statistics

MCMoveCpuTime mc_moves_cputime

Reactions reactions

TransitionMatrix tmmc

PropertyEnergy averageEnergies

PropertyLoading averageLoadings

PropertyEnthalpy averageEnthalpiesOfAdsorption

PropertyTemperature averageTemperature

PropertyTemperature averageTranslationalTemperature

PropertyTemperature averageRotationalTemperature

PropertyPressure averagePressure

PropertySimulationBox averageSimulationBox

std::optional< SampleMovie > samplePDBMovie

std::optional< PropertyConventionalRadialDistributionFunction > propertyConventionalRadialDistributionFunction

std::optional< PropertyRadialDistributionFunction > propertyRadialDistributionFunction

std::optional< PropertyDensityGrid > propertyDensityGrid

std::optional< PropertyEnergyHistogram > averageEnergyHistogram

std::optional< PropertyNumberOfMoleculesHistogram > averageNumberOfMoleculesHistogram

std::optional< PropertyMeanSquaredDisplacement > propertyMSD

std::optional< PropertyVelocityAutoCorrelationFunction > propertyVACF

std::optional< WriteLammpsData > writeLammpsData

std::size_t columnNumberOfGridPoints {100}

double columnTotalPressure {1e5}

double columnPressureGradient {0.0}

double columnVoidFraction {0.4}

double columnParticleDensity {1000}

double columnEntranceVelocity {0.1}

double columnLength {0.3}

double columnTimeStep {0.0005}

std::size_t columnNumberOfTimeSteps {0}

bool columnAutoNumberOfTimeSteps {true}

MultiSiteIsotherm::PredictionMethod mixturePredictionMethod {MultiSiteIsotherm::PredictionMethod::IAST}

PressureRange pressure_range

std::size_t numberOfCarrierGases {0}

std::size_t carrierGasComponent {0}

std::size_t maxIsothermTerms {0}

std::vector< std::optional< InterpolationEnergyGrid > > interpolationGrids


Friends

Archive< std::ofstream > & operator<< (Archive< std::ofstream > &archive, const System &s)

Archive< std::ifstream > & operator>> (Archive< std::ifstream > &archive, System &s)


Detailed Description

Represents the central system for simulations.

The System struct holds all objects required for simulations, such as atom lists, frameworks, and simulation boxes. It is passed to various simulation methods, like MonteCarlo, to conduct simulations. The system can contain frameworks (zeolite/MOF) or a simulation box, and it manages various simulation parameters and states.

Constructor & Destructor Documentation

◆ System() [1/2]

System::System ( )
default

Default constructor for the System class.

Initializes a System object with default values.

◆ System() [2/2]

System::System ( std::size_t  id,
ForceField  forcefield,
std::optional< SimulationBox >  box,
double  T,
std::optional< double >  P,
double  heliumVoidFraction,
std::optional< Framework >  framework,
std::vector< Component >  components,
std::vector< std::vector< double3 > >  initialPositions,
std::vector< std::size_t >  initialNumberOfMolecules,
std::size_t  numberOfBlocks,
const MCMoveProbabilities &  systemProbabilities = MCMoveProbabilities(),
std::optional< std::size_t >  sampleMoviesEvery = std::nullopt
)

Constructs a System object programmatically.

Initializes a System with the provided parameters, including system ID, simulation box, temperature, pressure, force field, framework components, and other simulation-related configurations.

Parameters
idThe identifier for the system.
boxThe optional simulation box for the system.
TThe temperature of the system.
PThe optional pressure of the system.
forcefieldThe force field used in the simulation.
frameworkComponentThe list of framework components in the system.
componentsThe list of components in the system.
initialNumberOfMoleculesThe initial number of molecules per component.
numberOfBlocksThe number of blocks in the simulation.
systemProbabilitiesThe move probabilities for the Monte Carlo simulation.
sampleMoviesEveryInterval in which movies are written to PDB.
The documentation for this struct was generated from the following file:
